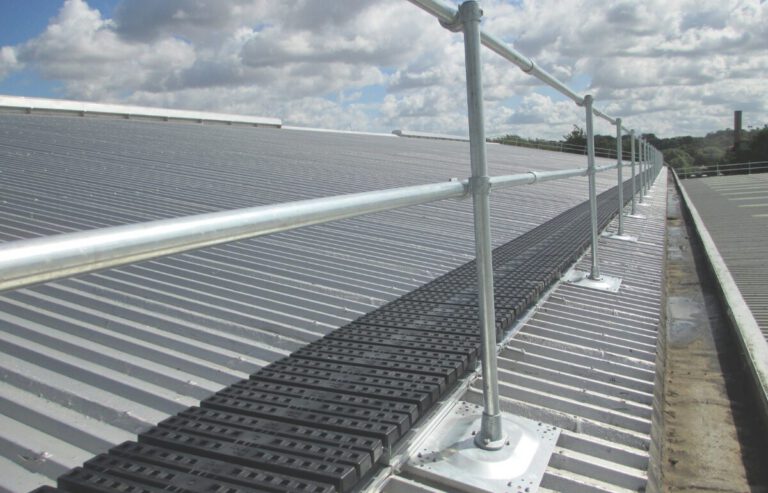

BS EN 13374
Fixed Guardrail
Bolted to the structure for parapets, walkways and plant areas where a permanent rail is right.
Photo 1 / 5
Roof edge protection
Parapet Guardrails
Fixed edge protection for roofs that already have a parapet, without touching the membrane.
- BS 6180:2011
- BS EN ISO 14122-3:2016
- Fixing
- Anchor bolts into the parapet, top or side mounted
- Best for
- Parapets too low to protect on their own
- Finished height
- 1.1 m, as required by HSE
- Materials
- Galvanised tube and fittings, powder-coat optional
- Installation
- No specialist tools or labour
-
A top fixed guardrail mounted on a parapet
Fixed Edge Protection
Our Fixed Railing System is an ideal solution for roofs where existing parapets do not offer sufficient fall protection or when there is limited space available. This Guardrail consists of galvanised steel posts and anchor bolts that are installed on the top of a wall or parapet to create a secure barrier. The guardrail is adjustable, allowing it to be extended or shortened depending on the required length and can be customised with accessories such as handrails and toe boards for added safety. This system is particularly suitable for historical buildings because of the low level of their parapets. The guardrail can be fixed either on the top or side of the parapet, creating a permanent and reliable form of collective fall prevention.
-
A fixed railing system mounted to the parapet
Flexible Fall Protection
Depending on the requirements of your project, our Railing System can be fixed either on top or the side of the parapet. Side Fixed - This requires minimal space and usually does not risk damaging any waterproof membrane when mounted to the parapet. It also reduces visibility from ground level, making it a good option for projects where aesthetics are important. Top Fixed - This is the easiest way to bring any parapet up to 1.1m in height, providing complete collective fall protection as required by HSE.
Get In Touch
Call us, email us, or fill out our contact form and one of our team will get back to you!
-
Side-mounted galvanized fittings on a parapet
Features
- Choose from side or top mount.
- Galvanized tube and fittings
- Four times more corrosion resistant than other galvanized tubes.
- Powder-coated to any colour or finish
-

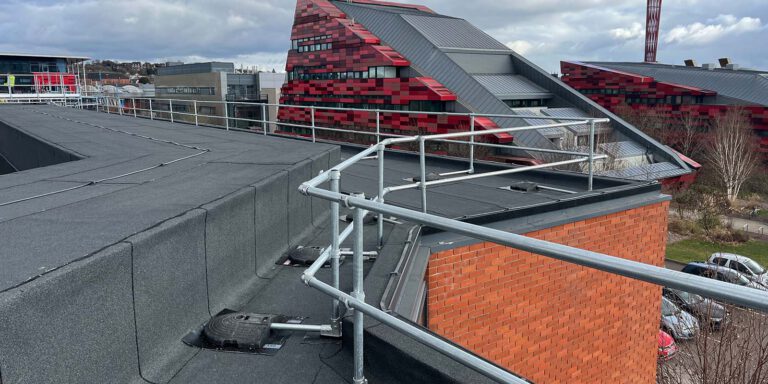

A freestanding counterweighted guardrail, fixed to nothing
Benefits
- Suitable for historic or listed buildings
- Easily adjustable to fit any parapet roof
- Angled fittings are available to project away from the edge.
- Easy installation requiring no specialist tools and labour.
- Our Kee Guard's freestanding guardrail system provides an exceptional collective fall prevention solution, making it the ideal choice for roofs of any material. The guardrail system typically requires no attachment to the existing roof structure, making it suitable for most roof surfaces and styles.
Top vs side fixed
Two ways to fix to your parapet
Switch between the options to see how each one sits on the wall.
Specifications
Performance & standards
- Finished height
- 1,100 mm, to BS 6180:2011 and BS EN ISO 14122-3:2016
- Edge protection standard
- BS 6180:2011 · BS EN ISO 14122-3:2016
- Protection type
- Permanent collective fall prevention
Construction
- Posts & rails
- Galvanised steel tube
- Fittings
- Galvanised Kee Klamp®, four times more corrosion resistant than other galvanised tube
- Fixing method
- Anchor bolts, top or side of parapet
- Finish
- Galvanised, or powder-coated to any colour or finish
- Accessories
- Handrails, toe boards, angled fittings
Application
- Suits
- Low or insufficient parapets, limited roof space, historic and listed buildings
- Run length
- Adjustable, extended or shortened to suit
- Installation
- No specialist tools or labour required
- Inspection
- Annually, by a competent person
When to choose a parapet guardrail
A good fit when
- Your roof has a parapet that's below 1.1 m
- There is limited space behind the wall
- The building is historic, listed or street-facing
- The parapet is sound enough to take anchor bolts
Consider instead
- Rooftop Guardrail (Kee Guard®) — no parapet, or one that can't be drilled: freestanding, zero penetration
- Folding Guardrail — where the rail must fold flat out of sight when not in use
- Fixed Guardrail — walkways and plant areas away from the parapet
30-second check
Which guardrail does your edge need?
Answer two questions and we'll point you to the right system. Your survey confirms it on site.
What's at the roof edge now?
Is the building listed, or is the edge visible from the street?
Standards
Compliant on day one, and every year after
The Work at Height Regulations put collective protection first. A parapet guardrail gives you that, and our inspection service keeps the records current.
-
WAHR 2005
Collective first
Regulation 7 puts collective protection ahead of harnesses
-
HSE
1.1 m height
Top fixing brings any parapet to full protection height
-
ANNUAL
Inspection
Fixings, rails and parapet condition checked by a competent person
FAQs
Questions about parapet guardrail
Parapet height, top or side fixing, colour matching, and what to do when the parapet is too weak.
How high does a parapet need to be to protect people?
For permanent edge protection the finished height should be 1.1 m. If your parapet is lower, a parapet guardrail fixed to the top of the wall raises it to that height and provides complete collective protection.
Should I choose top fixed or side fixed?
Top fixing is the simplest way to reach 1.1 m on almost any parapet. Side fixing needs very little space, keeps the rail lower from street level and usually avoids any risk to the waterproof membrane, which makes it popular on historic and listed buildings. Our survey recommends the right option for your wall.
Will fixing to the parapet damage my roof?
The guardrail bolts into the parapet, not the roof, so the membrane isn't touched. Side-fixed brackets are usually the lowest-risk option where the membrane runs up the inside face of the wall.
Can the guardrail match the colour of the building?
Yes. The galvanised tube and fittings can be powder-coated to any colour or finish, so the rail blends in with the façade.
What if my parapet isn't strong enough to take fixings?
If the wall can't take anchor bolts, a freestanding Kee Guard® rooftop guardrail sits behind the parapet on counterweighted bases with no fixings at all.
How often should parapet guardrails be inspected?
Annually by a competent person, covering the rails, fittings, anchor bolts and the condition of the parapet itself. Mantech runs scheduled inspections through our inspection service.
Related systems
Other guardrail systems for edges this one does not suit.
-
-
BS 13700:2021

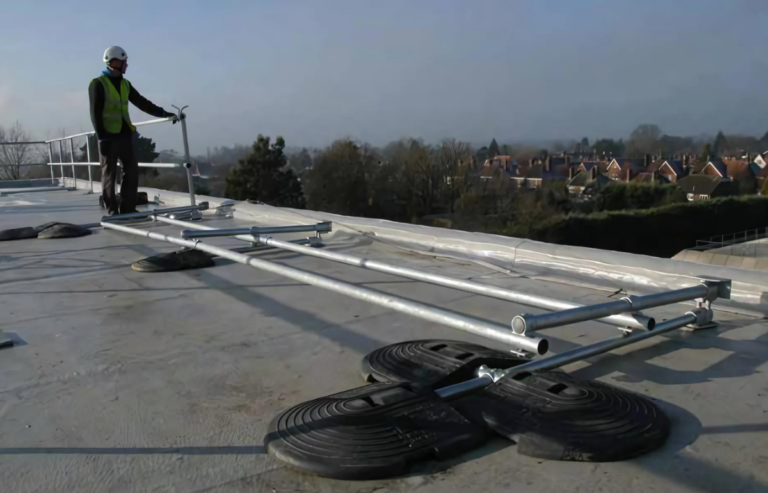

Folding Guardrail
Folds flat when not in use — for listed buildings and facades where sightlines matter.
-
BS EN 13374 Class A
Rooftop Guardrail
Counterweighted — sits on the roof with zero penetration. The right answer for most flat membrane and asphalt roofs.
Talk to us about your roof
Tell us what you need to protect and we will survey the site, recommend a system and quote it — free, and with no obligation.
